Products and Pricing

★

Product Introduction

Overview of KMS, F70, and D51 devices with key specifications

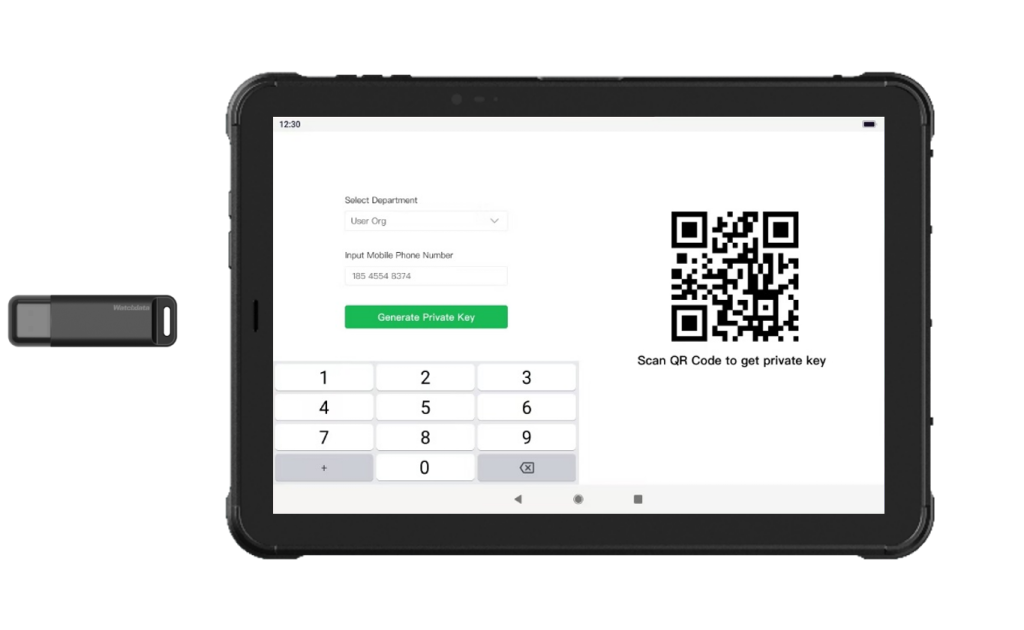

The KMS - Private key generator

Device Purpose: Manage the root key for your communication domain, and generate a user private key for each VoLTE device within the domain based on the communication number.

Offline Design：All IP transmission channels (cellular/Wi-Fi) have been shut down at the system level.

SAKKE Key length: According to RFC 6508, the KMS root key length for SAKKE is 1024bit. The user private key length for SAKKE is 2048bit.

Root Key Secure Storage: KMS root key stored in KMS, the key used to encrypt the root key stored in U-key. U-key insertion is mandatory for KMS startup and operation.

Key Specifications

Specification	Details
Dimensions	10.59 in. L × 6.65 in. W × 0.49 in. H (269mm × 169mm × 12.5mm)
Weight	26.1 oz. / 740g with battery
Display	10.95" HD (1920×1200) industrial-grade IPS, Corning Gorilla Glass, 500 NITS LED backlight
Processor	Octa-core: 2× Arm Cortex-A76 @ 2.2GHz + 6× Arm Cortex-A55 @ 2.0GHz
Operating System	Android 15.0
Memory	RAM: 6GB (Optional 8GB); Flash: 128GB (Optional 256GB/512GB); MicroSD up to 512GB
Battery	Rechargeable Li-ion 3.85V 10000mAh, supports 12V/3A 30W PE2.0/PD3.0 fast charging
Durability	IP67 rated; withstands 1.2m drops to concrete; 500 tumbles
Touch Panel	Capacitive touch panel, supports water & gloves touch mode
Max Encrypted Terminals	10,000
Operating Temperature	-4°F to 122°F / -20°C to +50°C; Storage: -40°F to 158°F / -40°C to +70°C

The F70 - 5G VoLTE Encryption Large-Screen Smartphone

Device Purpose: Support the native VoLTE Voice and SMS end to end Encryption.

Symmetric Encryption Algorithm and Key Length: The mobile terminal adopts the AES256_CTR algorithm to encrypt communication data with a 256-bit key length.

Private Key Secure Storage: The user private key downloaded by KMC (key management client on the mobile terminal) from KMS via QR code scanning is encrypted and stored through the TEE interface. The key for encrypting the user private key is stored inside the mobile device’s TEE trusted execution environment and is inaccessible to the rich OS space.

Key Specifications

Specification	Details
Dimensions	6.72 in. L × 3.11 in. W × 0.35 in. H (170.8mm × 79.1mm × 9.0mm)
Weight	7.3 oz. / 207.7g
Display	6.81" FHD+ (2400×1080) punch-hole display
Processor	Octa-core 2.2GHz (Domestic chipset)
Operating System	Android 15
Memory	RAM: 8GB; ROM: 128GB (Optional 6GB+128GB / 8GB+256GB)
Camera	Rear: 48MP + 8MP (wide-angle) + 2MP (bokeh); Front: 8MP
Battery	5000mAh (typical), 9V/2A 18W fast charging
Durability	IP54 rated
End-to-End Encryption Voice Latency	<30ms
Frequency Bands	4G LTE-FDD: B1/B3/B5/B7/B8; 4G LTE-TDD: B34/B38/B39/B40/B41(2515-2675MHz); 5G NR: N1/N41/N78/N28A

The D51- 5G VoLTE Encryption Rugged Smartphone

Device Purpose: Support native VoLTE voice and SMS end-to-end encryption with rugged and explosion-proof capabilities.

Symmetric Encryption Algorithm and Key Length: AES256_CTR with 256-bit key length (same as F70).

Private Key Secure Storage: User private key encrypted and stored via TEE interface (same as F70).

PTT Button: Dedicated push-to-talk button; supports group call, temporary group, and two-way intercom via public network.

Special Environment Adaptability: It features rugged and explosion-proof performance, suitable for special operation scenarios.

Key Specifications

Specification	Details
Dimensions	6.75 in. L × 3.20 in. W × 0.45 in. H (171.6mm × 81.2mm × 11.55mm)
Display	6.67" FHD+ (2400×1080), auto-brightness, glove & wet hand touch mode
Processor	Octa-core 2.2GHz, 6nm EUV (Domestic 5G chipset)
Operating System	Android 15
Memory	RAM: 8GB; ROM: 128GB / 256GB, MicroSD expansion
Camera	Rear: 48MP (AI) + 13MP (wide-angle); Front: 8MP (AI)
Battery	4300mAh, fast charging with overload protection
Durability	IP68 rated; 2.0m drop to concrete (12 drops); 1m underwater for 2 hours
Explosion-Proof Rating	Ex ib IIC T4 Gb (intrinsically safe)
PTT & Public Network Intercom	Dedicated PTT button; group call, temporary group, two-way intercom
Positioning	GPS / GLONASS / AGPS / WLAN / Bluetooth; independent BeiDou (BDS)
End-to-End Encryption Voice Latency	<30ms
Frequency Bands	4G LTE-FDD: B1/B3/B5/B7/B8; 4G LTE-TDD: B34/B38/B39/B40/B41(2515-2675MHz); 5G NR: N1/N41/N78/N28A

★

Unit Price

Individual device pricing (EXW)

Unit Price

KMS

Unit price: $22,000

F70

Unit price: $760

D51

Unit price: $1060

All prices quoted are EXW (Ex Works) price, excluding domestic logistics, ocean freight, customs declaration, duties and all other transportation and tax expenses.

★

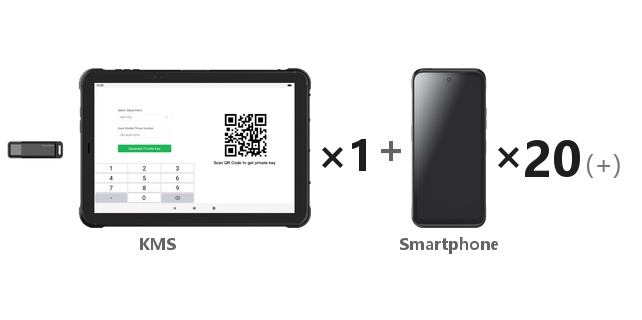

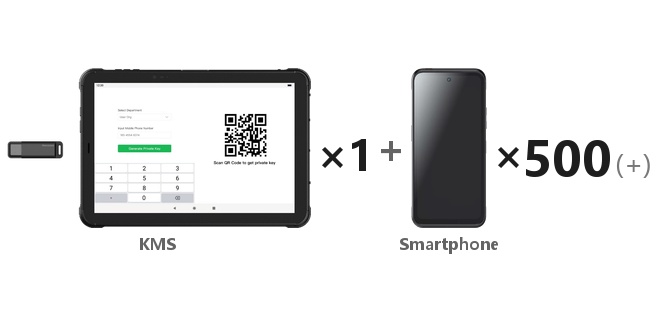

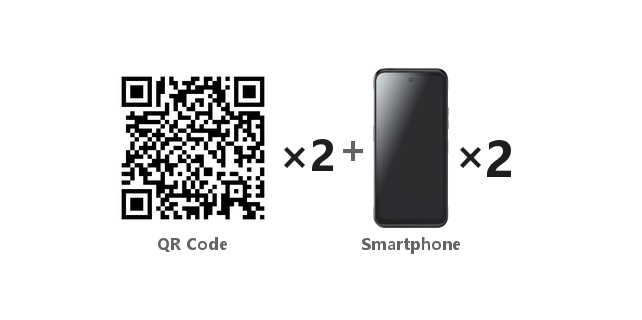

Package Pricing

Bulk discount packages for different scales
